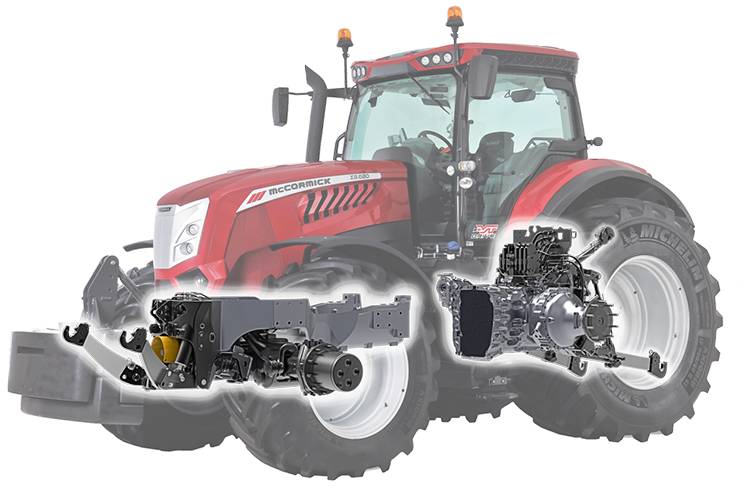

X8: Innovation at full throttle

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Μπροσούρα
Φωτογραφίες
Βίντεο
Διαστάσεις & Βάρη

X8: Innovation at full throttle

Engine

6,7 / 6

Power

264, 286, 310

Transmission

VT-Drive

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

PREMIERE Cab: your new office in first class

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Betapower Fuel Efficiency

The X8 tractors are powered by the new Betapower Fuel Efficiency 6.7-litre, 6-cylinder engines with eVGT turbocharger and common rail injection system. These engines meet Stage4/Tier4 Final emission regulations using a Hi-eSCR catalytic converter.

– X8.660 VT-Drive with 264/194 hp/kW

– X8.670 VT-Drive with 286/210 hp/kW

– X8.680 VT-Drive with 310/228 hp/kW

The new Betapower Fuel Efficency the powers the X8 series is a cutting-edge engine designed to offer simplicity and functionality without compromising on reliability and durability.

 X8.660 VT-Drive  X8.670 VT-Drive  X8.680 VT-Drive
Tier 4 FINAL/ Stage IV  BETAPOWER  BETAPOWER  BETAPOWER
ELECTRONIC HIGH PRESSURE COMMON RAIL EVGT
TURBO/AIR-TO-AIR INTERCOOLER
MAX. ENGINE POWER AT 1900 RPM (ISO TR 14396 ECE R120)  HP/kW 264/194 286/210 310/228
RATED ENGINE POWER AT 2200 RPM (ISO TR 14396 ECE R120) HP/kW 258/190 271/199 301/221
RATED ENGINE SPEED  RPM 2100 2100 2100
MAX. TORQUE (ISO TR 14396 ECE R120) NM 1132 1194 1282
TORQUE RISE 37% 32% 28%
BORE / STROKE   NM 104 / 132 104 / 132 104 / 132
DISPLACEMENT / NO. OF CYLINDERS / NO . OF VALVES     cm3 6728/6/24 6728/6/24 6728/6/24
S.C.R. EXHAUST SYSTEM
ADBLUE TANK CAPACITY 70 70 70
FUEL TANK CAPACITY 550 550 550

• standard

VT-Drive transmission

The McCormick VT-Drive transmission with its four-stage technology sets a new benchmark in continuous variable transmissions. Using a four-stage instead of usual two-stage CVT transmission offers real benefits to farmers and agricultural contractors who look for multi-purpose tractors capable of ensuring maximum productivity whatever the task or the field conditions. The VT-DRIVE transmission features four operating modes:

  1. Auto Mode – The electronic unit adjusts the engine revs and transmission ratio according to the potentiometer settings to achieve the required speed.
  1. Manual Mode – The operator sets the engine speed using the hand throttle. The electronic unit adjusts the transmission ratio to achieve the required speed.
  1. PTO Mode – The operator sets the engine speed using the hand throttle.

The electronic unit adjusts the transmission ratio to achieve the required speed,giving priority to PTO speed.

Hydraulic system tailored to your specific needs

The X8 tractors feature a closed-centre hydraulic system with variabledisplacement pump. This means that the pump always delivers exactly the quantity of oil that the system requires, thereby eliminating unnecessary power waste. The system supplies 157 l/min to the hitch and remote valves and 115 l/min to the electronic steering system, allowing for simultaneous operation of all hydraulic functions. The rear hitch provides a lifting capacity of up to 12000 kg. The system features up to eleven electrohydraulic remote valves: six at the rear, three at the front and two in the middle.

DIMENSIONS AND WEIGHTS

 X8.660  X8.670  X8.680
FRONT TYRES  650/65R34 650/65R34 650/65R34
REAR TYRES 900/60R42 900/60R42 900/60R42
A-MAX LENGHT (WITH BALLAST WEIGHTS)  mm 5150 5150 5150
B-MIN WIDTH  mm 2930 2930 2930
C-WHEELBASE  mm 3000 3000 3000
D-HEIGHT OVER CAB  mm 3400 3400 3400
E-GROUND CLEARANCE 520 520 520
TOTAL WEIGHT WITHOUT BALLAST WEIGHTS  Kg 10800 10800 10800
